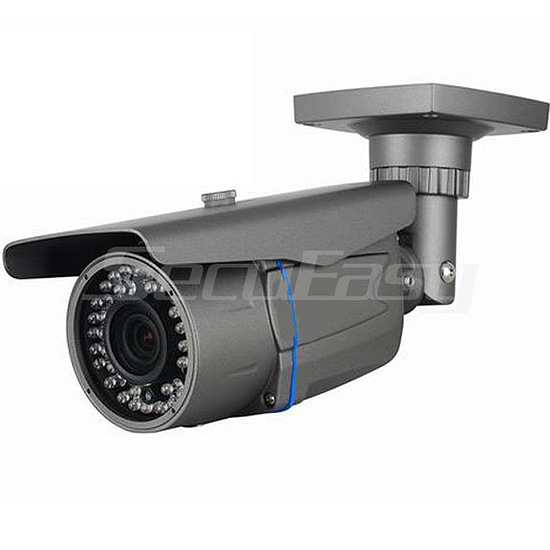

SecuEasy SE-NI203N - Camera Weatherproof IR IP camera with 3-Axis Bracket

Chargement...

-55%

Camera Weatherproof IR LED: ￠5*42pcs, 2 megapixel full real time,1/2.5"CMOS image sensor SE-NI203N

camera 2-5 megapixel, 1/2.5’’CMOS image sensor,dual-core 32-bit DSP(TI Davinci DM368, Main Stream: 5MP@10fps, 3MP@15fps, 1080P@25fps; IR-CUT, Weatherproof IR IP camera with 3-Axis Bracket, Cable built-in bracket Real day/night

Ce produit n'est plus proposé à la vente

Disponibilité : Obsolète (Fin de vie)

Evaluation :

Description
Téléchargements
Avis des clients

Description

Features:

※2 megapixel full real time,1/2.5"CMOS image sensor
※IR Led:￠5X42PCS
※IR distance: 30-40M
※Lens: Lens: CS Lens 8/6/4/12mm
※H.264 high quality compression, TI scheme
※Built in IR-CUT,low consumption, multiple interfaces
※Support CVBS standard
※Support dual stream
※1*RJ45 Ethernet interface,10/100M self-adaptation; support multi-protocol ,such as RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP

Fiche Technique

Model	SE-NI203N
IR Led	￠5X42PCS
IR Range	30-40M
Lens	support M12/M14/ CS mount lens, Lens8/6/4/12mm
Working Temperature	-20~+50℃
Size	139mmx78mmx70mm
Compression	H.264
Max.image Resolution	2592×1920
System Architecture	Embedded RTOS design, dual-core 32-bit DSP(TI Davinci DM368),pure hardware compression,WDT,128MFLASH,128MDDR2
Image Sensor	5 megapixel, 2 megapixel ,1/2.5’’CMOS image sensor; switching optical filters, day/night covert, infrared sensitive, photo resistor signal linkage
Min. Illumination	color 0.6Lux@F1.2, monochrome 0.08 Lux@F1
Video Process	H.264 codec, dual stream, AVI format record;0.1M-6Mbps bit rate (adjustable)
Frame Rate	5 megapixel 10fps,3 megapixel 17fps,2 megapixel 25fps(full real time), support 1-25 fps(adjustable)
Video Output	Main Stream:2592×1920,2048×1536,1920×1080,1600×1200,1280×1024, 1280×960,1024×768,1280×720; Sub Stream: 960*540,640×360,480×270,352×288,320×240,352×192,320×192, 288×192, 256×192(sub stream is unavailable in 5 megapixel)
Audio Interface	N/A
Audio Process	N/A
Network Interface	1*RJ45 Ethernet interface,10/100Mself-adaptation;
Protocol	RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP
Mobile phone	Iphone, Android
USB Interface	N/A
TF Interface	N/A
Auto Iris Lens Type	N/A
Photo Resistor	1*photo resistor interface, input signal and image by photo resistor, IR-CUT,IR LED linkage;
LED	1*IR LED control interface, control enable and disable IR LED by algorithm;
PTZ Interface	N/A
Alarm Interface	N/A
Analog Output	1 channel analog video output, support CVBS standard ,PAL/NTSC;
Optional	W(WiFi),-HW(high-power WiFi),-E(POE),-C(EVDO),-G(WCDMA),-J(Mobile Phone Surveillance);
Business Function	configure by WEB, OSD(on screen display),real-time video transmission, motion detection and IO alarm linkage front-end storage, playback front-end storage, download front-end storage, center prompt and picture pop-up after IO alarm; support remote surveillance client software(UC2)、VM6000 platform; support perfect SDK for secondary development
Others	DC12V input, power consumption: 3 watts
